Vesta® SE Serje Tunable White Gen 2 9mm Array Integrat B'Detentur S2

Bridgelux® Vesta® SE Serje Tunable White Gen 2 9mm Array Integrat b'S2 Holder

Ibgħat l-inkjesta

It-tniżżil

Deskrizzjoni

Bridgelux® Vesta® SE Serje Tunable White Gen 2 9mm Array Integrat b'S2 Holder

Arrays Bridgelux huma apparati kompletament inġinerija li jipprovdu prestazzjoni termali u ottika konsistenti fuq pjattaforma mekkanika inġinerija. L-arrays jinkorporaw diversi karatteristiċi biex jissimplifikaw l-integrazzjoni u l-assemblaġġ tad-disinn.

product-846-608

Familja tal-Prodott	Prodott	Numru tal-Parti	Numru tad-Dok	Ġen	Daqs LES (mm)	Medda CCT (K)	CRI	Tip. FLUSSU (lm) l-ogħla CCT	Kurrent (mA)	Vultaġġ (V)	Qawwa (W)	Effikaċja (lm/W)	Daqs tas-Sustrat (mm)
BXRV Vesta TW	Vesta SE Tunable White 9mm	BXRV-TR-2750G-10A0-A23-S2	DS361	2	⌀10.3	2700-5000	90	1012	500	18	9	111	⌀35.8
BXRV Vesta TW	Vesta SE Tunable White 9mm	BXRV-TR-2765G-10A0-A23-S2	DS361	2	⌀10.3	2700-6500	90	1021	500	18	9	112	⌀35.8
BXRV Vesta TW	Vesta SE Tunable White 9mm	BXRV-TR-2750G-10A0-B23-S2	DS361	2	⌀10.3	2700-5000	90	1030	250	35	8.8	117	⌀35.8
BXRV Vesta TW	Vesta SE Tunable White 9mm	BXRV-TR-2765G-10A0-B23-S2	DS361	2	⌀10.3	2700-6500	90	1040	250	35	8.8	118	⌀35.8
BXRV Vesta TW	Vesta SE Tunable White 9mm	BXRV-TR-1830G-10A0-B25-S2	DS361	2	⌀10.3	1800-3000	90	912	500	35	8.8	104	⌀35.8
BXRV Vesta TW	Vesta SE Tunable White 9mm	BXRV-TR-1840G-10A0-A25-S2	DS361	2	⌀10.3	1800-4000	90	965	500	18	9	106	⌀35.8
BXRV Vesta TW	Vesta SE Tunable White 9mm	BXRV-TR-1840G-10A0-B25-S2	DS361	2	⌀10.3	1800-4000	90	1001	250	36	9	111	⌀35.8

Tabella 1:Gwida tal-Għażla, Data tal-Kejl

Numru tal-Parti	Nominali CCT 1 Tc=85 grad (K)	Tipiku CRI2 Tc=85 grad	Nominali Drive Kurrenti, għal kull kanal (mA)	Tipiku Vf 3 Tc=25 grad (V)	Tipiku Qawwa Tc=25 grad (W)	Tipiku Pulsed Fluss3, 4, 5 Tc=25 grad (lm)	Tipiku Effikaċja T =25 grad5 (lm/W)	Minimu Pulsed Fluss8 Tc=25 grad (lm)	Tipiku DC Fluss T =85 grad6, 7 (lm)
BXRV-TR-2750G-10A0-A- 23-S2	2700	93	500	17.6	8.8	865	98	778	769
BXRV-TR-2750G-10A0-A- 23-S2	5000	92	500	18.2	9.1	1012	111	911	891
BXRV-TR-2765G-10A0-A- 23-S2	2700	93	500	17.6	8.8	865	98	778	769
BXRV-TR-2765G-10A0-A- 23-S2	6500	92	500	18.2	9.1	1021	112	919	899
BXRV-TR-2765S-10A0-A- 23-S2	2700	98, Tiffjorixxi	500	17.6	8.8	766	87	689	682
BXRV-TR-2765S-10A0-A- 23-S2	6500	98, Tiffjorixxi	500	18.2	9.1	915	101	823	805
BXRV-TR-2750G-10A0-B- 23-S2	2700	93	250	35.1	8.8	865	99	778	769
BXRV-TR-2750G-10A0-B- 23-S2	5000	92	250	35.1	8.8	1030	117	927	907
BXRV-TR-2765G-10A0-B- 23-S2	2700	93	250	35.1	8.8	865	99	778	769
BXRV-TR-2765G-10A0-B- 23-S2	6500	92	250	35.1	8.8	1040	118	936	915
BXRV-TR-2750S-10A0-B- 23-S2	2700	98, Tiffjorixxi	250	35.1	8.8	766	87	690	682
BXRV-TR-2750S-10A0-B- 23-S2	5000	98, Tiffjorixxi	250	35.1	8.8	923	105	830	831
BXRV-TR-2765S-10A0-B- 23-S2	2700	98, Tiffjorixxi	250	35.1	8.8	766	87	690	682
BXRV-TR-2765S-10A0-B- 23-S2	6500	98, Tiffjorixxi	250	35.1	8.8	931	106	838	837
BXRV-TR-1830G-10A0-B- 2X-S2	1800	92	250	35.1	8.8	585	67	527	521
BXRV-TR-1830G-10A0-B- 2X-S2	3000	92	250	35.1	8.8	910	104	819	801
BXRV-TR-1840G-10A0-A- 2X-S2	1800	92	500	17.6	8.8	594	68	535	529
BXRV-TR-1840G-10A0-A- 2X-S2	4000	92	500	18.2	9.1	965	106	868	849
BXRV-TR-1840S-10A0-A- 2X-S2	1800	92	500	17.6	8.8	594	68	535	529
BXRV-TR-1840S-10A0-A- 2X-S2	4000	98, Tiffjorixxi	500	18.2	9.1	868	95	781	764
BXRV-TR-1840S-10A0-B- 2X-S2	1800	92	250	36	9	612	68	551	545
BXRV-TR-1840S-10A0-B- 2X-S2	4000	98, Tiffjorixxi	250	36	9	864	96	778	769
BXRV-TR-1840G-10A0-B- 2X-S2	1800	92	250	36	9	630	70	567	561
BXRV-TR-1840G-10A0-B- 2X-S2	4000	92	250	36	9	1001	111	901	891

Tabella 2: Tabella tal-prodotti rreġistrati fir-Reġistru Ewropew tal-Prodotti għat-Tikkettar tal-Enerġija (EPREL)

Parti Numru	CCT (K)	CRI	Kur- kera 3 (mA)	Volt- età 3 (V)	Utli Fluss2 utli Tc=85 grad (lm)	Qawwa (W)	Effikaċja (lm/W)	Enerġija Effiċjenza Klassi4	Regis- trazzjoni Nru
Parti Numru	CCT (K)	CRI	Kur- kera 3 (mA)	Volt- età 3 (V)	Utli Fluss2 utli Tc=85 grad (lm)	Qawwa (W)	Effikaċja (lm/W)		Regis- trazzjoni Nru
BXRV-TR-2750G-10A0-A-23-S2	5000	90	700	17.8	1069	12.5	86	F	876530
BXRV-TR-2765G-10A0-A-23-S2	6500	90	700	17.8	1078	12.5	86	F	879126
BXRV-TR-2750G-10A0-B-23-S2	5000	90	480	34.3	1440	16.5	87	F	876531
BXRV-TR-2765G-10A0-B-23-S2	6500	90	480	34.3	1453	16.5	88	F	879127
BXRV-TR-2750S-10A0-B-23-S2	5000	97	480	34.3	1214	16.5	74	G	876537
BXRV-TR-2765S-10A0-B-23-S2	6500	97	480	34.3	1223	16.5	74	G	876540
BXRV-TR-1830G-10A0-B-2X-S2	3000	90	390	33.4	942	13.0	72	G	876520
BXRV-TR-1840G-10A0-A-2X-S2	4000	90	700	17.8	1030	12.5	82	F	876523
BXRV-TR-1840S-10A0-A-2X-S2	4000	97	660	17.7	812	11.7	69	G	876527
BXRV-TR-1840S-10A0-B-2X-S2	4000	97	420	33.8	1041	14.2	73	G	876528
BXRV-TR-1840G-10A0-B-2X-S2	4000	90	480	34.3	1316	16.5	80	F	876524

Tabella 3:Indiċi Tipiku tar-Rendiment tal-Kulur u Valuri TM-30 fi grad Tc =85

Nominali CCT1	Rf	R g	Ra	R1	R2	R3	R4	R5	R6	R7	R8	R9	R10	R11	R12	R13	R14	R15
2700K	96	99	98	96	98	97	94	96	95	98	98	97	95	91	92	96	97	97
4000K	97	101	97	96	98	98	97	97	97	99	97	92	97	95	96	97	98	96
5000K	96	99	98	98	98	98	95	98	96	97	97	95	96	97	91	97	98	96
6500K	96	99	98	98	98	99	97	98	98	99	98	95	96	98	93	98	99	96

Tabella 4:Valuri ASD tipiċi fi grad Tc =85

CCT nominali	ASD
2700K	11%
4000K	6%
5000K	9%
6500K	8%

Tabella 5: Karatteristiċi Elettriku

Numru tal-Parti	CCT Tc=85 grad (K)	Nominali Drive Kurrenti (mA)	Quddiem Vultaġġ Pulsed, Tc = 25 grad (V) 1, 2, 3, 7			Tipiku Tem- peratura Koeffiċjent ta' Quddiem Vultaġġ 4 ∆Vf/∆Tc (mV/ grad)	Tipiku Termali Reżistenza Junction to Kawża5 Rj-c (grad /W)	Għażla ta' Sewwieq Vultaġġi6 (V)
			Minimu	Tipiku	Massimu			Għażla ta' Sewwieq Vultaġġi6 (V)
			Minimu	Tipiku	Massimu			Vf Min. Hot Tc = 105 grad (V)	Vf Max. Kesħa Tc = -40 grad (V)
BXRV-TR-xxxxX-10A0-A- 2X-S2	1800, 2700	500	16.5	17.6	18.7	-5.9	0.91	16.1	19.0
BXRV-TR-xxxxX-10A0-A- 2X-S2	4000, 5000/6500	500	17.1	18.2	19.3	-5.9	0.91	16.6	19.7
BXRV-TR-xxxxX-10A0-B- 2X-S2	1800, 2700	250	33.0	35.1	37.2	-12.8	0.86	32.0	38.0
BXRV-TR-xxxxX-10A0-B- 2X-S2	3000, 5000/6500	250	33.0	35.1	37.2	-12.8	0.86	32.0	38.0
BXRV-TR-1840G-10A0-B- 2X-S2	1800	250	33.8	36.0	38.2	-11.1	1.00	32.9	38.9
BXRV-TR-1840G-10A0-B- 2X-S2	4000	250	33.8	36.0	38.2	-10.9	1.00	32.8	39.0

Tabella 6: Klassifikazzjonijiet Massimu

Parametru	Rating Massimu
Temperatura tal-junction LED (Tj)	125 grad
Temperatura tal-Ħażna	-40 grad sa +105 grad
Temperatura tal-Każ Operattiv1 (Tc)	105 grad
Saldjar Temperature2	350 grad jew inqas għal massimu ta '6 sekondi
	BXRV-TR-xxxxX-10A0-A-23-S2		BXRV-TR-xxxxX-10A0-B-2X-S2
	Kanal 1	Kanal 2	Kanal 1	Kanal 2
	2700K 1800K	5000K, 6500K, 4000K	2700K, 1800K	5000K, 6500K, 3000K, 4000K
Kurrent Massimu ta' Drive Magħqud4	700mA	700mA	480mA	480mA
Kurrent Massimu ta' Drive Pulsed5	960mA	720mA	500mA	500mA
Enerġija Totali Massima	13.0W		18.0W

product-816-769

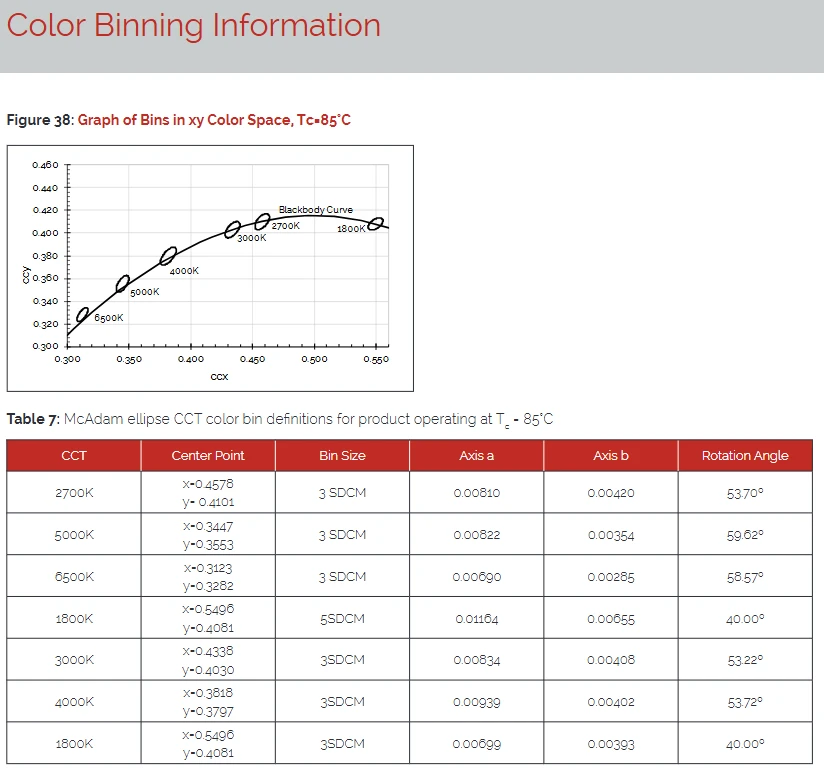

product-824-776
